Taranis Gimals in a 9X

Cant get your radio to work? General Hardware issues?
davx
Posts: 210
Joined: Sun Sep 15, 2013 7:01 am
Country: -

Re: Taranis Gimals in a 9X

Post by davx » Sat Nov 23, 2013 8:24 am

Hi,

And what about swapping + and - directly on the Taranis gimbals pot, I mean swapping between the pot and the opamp ?


volumax
Posts: 210
Joined: Tue Feb 12, 2013 12:21 pm
Country: -

Re: Taranis Gimals in a 9X

Post by volumax » Sat Nov 23, 2013 8:32 am

Before I was told the 9x has "creative" coloring I had brown to black, red to red and my radio wouldnt turn on. So they only work in one direction.

User avatar
Kilrah
Posts: 10800
Joined: Sat Feb 18, 2012 6:56 pm
Country: Switzerland

Re: Taranis Gimals in a 9X

Post by Kilrah » Sat Nov 23, 2013 9:21 am

Would work in theory, but it's very tiny in there. You'd have to cut traces and bridge them crossed with super fine wires.

volumax
Posts: 210
Joined: Tue Feb 12, 2013 12:21 pm
Country: -

Re: Taranis Gimals in a 9X

Post by volumax » Mon Nov 25, 2013 2:11 am

Hey Mike how is the idea looking?

User avatar
MikeB
9x Developer
Posts: 17336
Joined: Tue Dec 27, 2011 1:24 pm
Country: -
Location: Poole, Dorset, UK

Re: Taranis Gimals in a 9X

Post by MikeB » Mon Nov 25, 2013 8:58 am

Was busy yesterday, and then sorting the SPort code for the openXsensor. I should get back on it today!

Mike.

Edit: OK, I think this is working. I'll post a test version of er9x. Which version do you need (er9x, er9x-frsky, er9x-128 etc.)?

Mike.
erskyTx/er9x developer
The difficult we do immediately,
The impossible takes a little longer!


User avatar
Kilrah
Posts: 10800
Joined: Sat Feb 18, 2012 6:56 pm
Country: Switzerland

Re: Taranis Gimals in a 9X

Post by Kilrah » Mon Nov 25, 2013 1:18 pm

I'm implementing it in openTx as well, can you confirm that only the 2 horizontal axes (rudder/ailerons) are inverted? Or all 4?

volumax
Posts: 210
Joined: Tue Feb 12, 2013 12:21 pm
Country: -

Re: Taranis Gimals in a 9X

Post by volumax » Mon Nov 25, 2013 1:58 pm

Hey Mike, Im using Er9x.

volumax
Posts: 210
Joined: Tue Feb 12, 2013 12:21 pm
Country: -

Re: Taranis Gimals in a 9X

Post by volumax » Mon Nov 25, 2013 1:59 pm

Kilrah I have only put on the right gimbal and only ailerons is inverted, I fly mode 2, so that same axis on the left would be rudder, I havent connected the left gimbal but should have the same effect.

User avatar
MikeB
9x Developer
Posts: 17336
Joined: Tue Dec 27, 2011 1:24 pm
Country: -
Location: Poole, Dorset, UK

Re: Taranis Gimals in a 9X

Post by MikeB » Mon Nov 25, 2013 2:15 pm

Test version now available, see here:
http://openrcforums.com/forum/viewtopic ... 969#p64969

Setting which sticks are reversed is slightly odd (to save using too much flash). It's basically a 4 bit binary value, each bit set corresponds to a stick reversed, but you cycle through the 16 different possibilities. THe stick image is inverse video is the stick is reversed. You will need to re-calibrate if you reverse a stick.

Mike.
erskyTx/er9x developer
The difficult we do immediately,
The impossible takes a little longer!

volumax
Posts: 210
Joined: Tue Feb 12, 2013 12:21 pm
Country: -

Re: Taranis Gimals in a 9X

Post by volumax » Mon Nov 25, 2013 4:05 pm

Thanks Mike I will test when I get home.

volumax
Posts: 210
Joined: Tue Feb 12, 2013 12:21 pm
Country: -

Re: Taranis Gimals in a 9X

Post by volumax » Tue Nov 26, 2013 12:04 am

Mike I tried the test version, it works great, only thing is the software seems to lag as you move through the screens.

volumax
Posts: 210
Joined: Tue Feb 12, 2013 12:21 pm
Country: -

Re: Taranis Gimals in a 9X

Post by volumax » Tue Nov 26, 2013 4:05 am

Another note, when I calibrate and move all the way up diagonally either left or right I cant get it perfect like when I go diagonal down. Another thing about the taranis gimbals on a 9x, something Rob already pointed out, the gimbals go only one way that will let the transmitter close up. Thats with the horizontal axis pot on the top because the screw that changes if this is your throttle gimbal or not wont permit closing the transmitter if its upward.
Attachments
photo (6).JPG

volumax
Posts: 210
Joined: Tue Feb 12, 2013 12:21 pm
Country: -

Re: Taranis Gimals in a 9X

Post by volumax » Tue Nov 26, 2013 5:30 am

Tried setting up the phoenix sim but wasnt able to set curves on er9x, when I hit ID1 or ID2 its like I programmed nothing, can anyone try setting up a heli with this test version and see where I am failing? Also on Channel Order on RADIO SETUP I had to select ATER to be able to get Ail,Elev,Thr,Rud order on Mixes.

User avatar
MikeB
9x Developer
Posts: 17336
Joined: Tue Dec 27, 2011 1:24 pm
Country: -
Location: Poole, Dorset, UK

Re: Taranis Gimals in a 9X

Post by MikeB » Tue Nov 26, 2013 9:12 am

There is a change to the menu handling, it is supposed to be better!
Exactly how is the calibration not 'perfect'?
Maybe post your EEPROM to see what the problem with curves is.
I'll look into the channel order problem.

Mike.
erskyTx/er9x developer
The difficult we do immediately,
The impossible takes a little longer!

User avatar
MikeB
9x Developer
Posts: 17336
Joined: Tue Dec 27, 2011 1:24 pm
Country: -
Location: Poole, Dorset, UK

Re: Taranis Gimals in a 9X

Post by MikeB » Tue Nov 26, 2013 10:59 am

The channel order problem occurs when you create a new model. If you apply a template, it is then correct. I know the fix!

Mike.
erskyTx/er9x developer
The difficult we do immediately,
The impossible takes a little longer!

volumax
Posts: 210
Joined: Tue Feb 12, 2013 12:21 pm
Country: -

Re: Taranis Gimals in a 9X

Post by volumax » Tue Nov 26, 2013 9:31 pm

I went back to the firmware I had before this one to verify the mixes for heli curves on throttle and collective I had and they worked properly, but when I try on the test version they wont work. Also when I apply a new throttle mix and go to the display the display doesnt move, I have to turn off the radio and back on for it to move again. I will put the test version back on and post the eeprom.

volumax
Posts: 210
Joined: Tue Feb 12, 2013 12:21 pm
Country: -

Re: Taranis Gimals in a 9X

Post by volumax » Tue Nov 26, 2013 11:01 pm

Something I noticed, when I test the mixes with the Simulate option on eepee THEY WORK! But on the transmitter they dont, check this video out where I have a throttle curve of 90 flat on ID1 and 100 flat on ID2. Also you can see I had to restart the tx for the throttle to even move.

http://www.youtube.com/watch?v=Ast62LqQZHw

andrewju
Posts: 773
Joined: Tue Aug 21, 2012 7:29 am
Country: Russian Federation
Location: Moscow

Re: Taranis Gimals in a 9X

Post by andrewju » Wed Nov 27, 2013 5:25 am

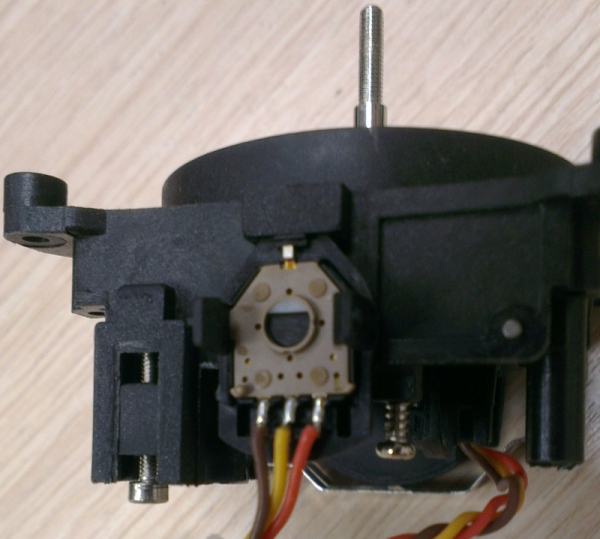

For those who consider upgrading to Taranis sticks: there seem to be a version of sticks without amplifiers. Not sure if it's a 'first batch', or a 'modified' one... Here's the photo (sorry for the quality - I had to use a phone):


I got this stick from t9hobbysport.com. There are at least a couple other guys who reported to have the same sticks without amplifiers.
The good thing is that reversing of these sticks can be done simply by swapping the cables (no need for firmware support). Although, I do not know if there is any difference in smoothness or resolution compared to sticks that came with amplifiers.

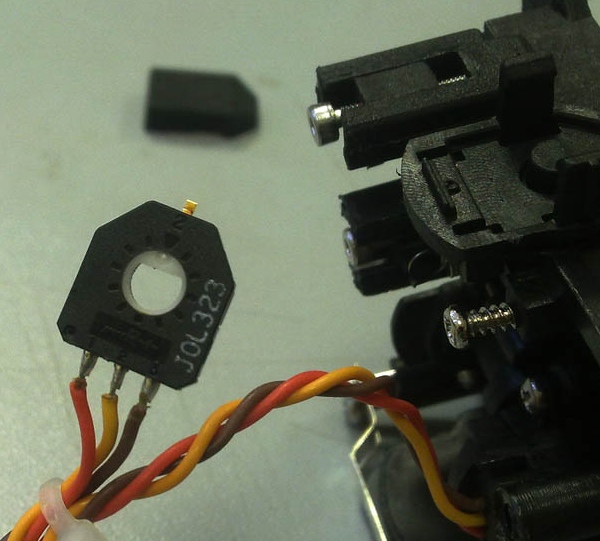

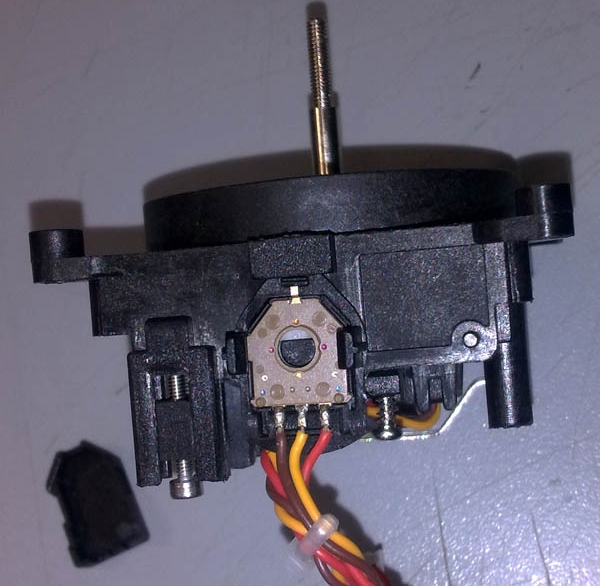

Here are other photos of a similar stick:



User avatar
Kilrah
Posts: 10800
Joined: Sat Feb 18, 2012 6:56 pm
Country: Switzerland

Re: Taranis Gimals in a 9X

Post by Kilrah » Wed Nov 27, 2013 7:33 am

Interesting, can you measure the restistance between the center pin and one of the side ones when the corresponding axis is at both ends?
Alternatively list the min/max hex values in the analog diag page if you don't have a multimeter? Would be interesting to see if they changed pots or decided the reduced resolution was good enough...

andrewju
Posts: 773
Joined: Tue Aug 21, 2012 7:29 am
Country: Russian Federation
Location: Moscow

Re: Taranis Gimals in a 9X

Post by andrewju » Wed Nov 27, 2013 8:45 am

Sure. The resistance is about 580 to 2430 Ohms, end to end.

Can someone please share the value for the pot with an amplifier?

User avatar
Kilrah
Posts: 10800
Joined: Sat Feb 18, 2012 6:56 pm
Country: Switzerland

Re: Taranis Gimals in a 9X

Post by Kilrah » Wed Nov 27, 2013 9:09 am

Woops, and what's total resistance (between both outer pins of the pot?)

andrewju
Posts: 773
Joined: Tue Aug 21, 2012 7:29 am
Country: Russian Federation
Location: Moscow

Re: Taranis Gimals in a 9X

Post by andrewju » Wed Nov 27, 2013 9:25 am

2600 Ohms

How bad is it???

Edit: Just measured another pot: 490 to 2440 Ohms, and 2740 Ohms total.

User avatar
MikeB
9x Developer
Posts: 17336
Joined: Tue Dec 27, 2011 1:24 pm
Country: -
Location: Poole, Dorset, UK

Re: Taranis Gimals in a 9X

Post by MikeB » Wed Nov 27, 2013 10:07 am

Looks like an 80 degree pot.

Mike.
erskyTx/er9x developer
The difficult we do immediately,
The impossible takes a little longer!

User avatar
MikeB
9x Developer
Posts: 17336
Joined: Tue Dec 27, 2011 1:24 pm
Country: -
Location: Poole, Dorset, UK

Re: Taranis Gimals in a 9X

Post by MikeB » Wed Nov 27, 2013 10:10 am

volumax: I really need to see the EEPROM please.

Mike.
erskyTx/er9x developer
The difficult we do immediately,
The impossible takes a little longer!

volumax
Posts: 210
Joined: Tue Feb 12, 2013 12:21 pm
Country: -

Re: Taranis Gimals in a 9X

Post by volumax » Wed Nov 27, 2013 10:48 am

Oops sorry I thought I had uploaded it, here you go.
Attachments
mixtest.eepe
(1.46 KiB) Downloaded 195 times

volumax
Posts: 210
Joined: Tue Feb 12, 2013 12:21 pm
Country: -

Re: Taranis Gimals in a 9X

Post by volumax » Wed Nov 27, 2013 10:51 am

Mike when I simulate it on EEPE it works fine, the problem is on the transmitter.

User avatar
Kilrah
Posts: 10800
Joined: Sat Feb 18, 2012 6:56 pm
Country: Switzerland

Re: Taranis Gimals in a 9X

Post by Kilrah » Wed Nov 27, 2013 11:17 am

andrewju wrote:Edit: Just measured another pot: 490 to 2440 Ohms, and 2740 Ohms total.
Looks good then, they apparently managed to find a mechanically compatible pot that gives similar resolution witout the need for the amp.

User avatar
MikeB
9x Developer
Posts: 17336
Joined: Tue Dec 27, 2011 1:24 pm
Country: -
Location: Poole, Dorset, UK

Re: Taranis Gimals in a 9X

Post by MikeB » Wed Nov 27, 2013 11:21 am

They may have gone to the manufacturer and got a 'special' made. With the number they need, it is probably cheaper to do that, then keep making the amplifier version.

Mike.
erskyTx/er9x developer
The difficult we do immediately,
The impossible takes a little longer!

andrewju
Posts: 773
Joined: Tue Aug 21, 2012 7:29 am
Country: Russian Federation
Location: Moscow

Re: Taranis Gimals in a 9X

Post by andrewju » Wed Nov 27, 2013 11:33 am

I wonder if they will sell just the pots as spares...

User avatar
MikeB
9x Developer
Posts: 17336
Joined: Tue Dec 27, 2011 1:24 pm
Country: -
Location: Poole, Dorset, UK

Re: Taranis Gimals in a 9X

Post by MikeB » Wed Nov 27, 2013 12:20 pm

volumax wrote:Mike when I simulate it on EEPE it works fine, the problem is on the transmitter.
OK, I can see there is a problem, I'll look into it a bit later today.

Mike.
erskyTx/er9x developer
The difficult we do immediately,
The impossible takes a little longer!
