Re: Audio (voice) - Stock 9X PCB

Post by Romushock » Sat Dec 08, 2012 9:48 am

MikeB wrote:Hmmm, no SD card, just a SPI flash device of 4 M BYTE. It will probably work, but I think the storage will be limiting.
And this one, for example? http://www.waytronic.com/eshowshop.asp?/67.html


User avatar
MikeB
9x Developer
Posts: 16547
Joined: Tue Dec 27, 2011 1:24 pm
Country: -
Location: Poole, Dorset, UK

Re: Audio (voice) - Stock 9X PCB

Post by MikeB » Sat Dec 08, 2012 4:49 pm

I think I have some soldering to do :D
Mike.
erskyTx/er9x developer
The difficult we do immediately,
The impossible takes a little longer!

User avatar
LTMNO
Posts: 1049
Joined: Fri Nov 30, 2012 9:31 pm
Country: Canada
Location: Toronto, Canada

Re: Audio (voice) - Stock 9X PCB

Post by LTMNO » Sat Dec 08, 2012 4:54 pm

very nice... good luck with the build Mike... can't wait to see the end result.
Custom 9x with M64/Telemetry Mod

User avatar
man-bis
Posts: 27
Joined: Tue Dec 27, 2011 9:10 pm
Country: -
Location: Russia

Re: Audio (voice) - Stock 9X PCB

Post by man-bis » Sat Dec 08, 2012 5:36 pm

Mike! I thought that the board would be more difficult. I'm sure that can be done without metallizer holes. Preferable to use a single layer board with jumper. Is it possible? It is waiting for test results, too!

hageha
Posts: 213
Joined: Tue Dec 27, 2011 9:25 pm
Country: -
Location: Hildesheim

Re: Audio (voice) - Stock 9X PCB

Post by hageha » Sat Dec 08, 2012 6:39 pm

Here is the final (?) Version of "DIL1206" board.
Accordingly, Mike's last Schematic.
220μF electrolytic capacitor is provided
Hans
Attachments
Drill.txt
(1.38 KiB) Downloaded 194 times
AudioMegaDIL2_SST.pdf
(22.9 KiB) Downloaded 180 times
AudioMegaDIL2_sch.pdf
(54.42 KiB) Downloaded 178 times
AudioMegaDIL2_BOM.pdf
(24.81 KiB) Downloaded 142 times
AudioMega2_GER.txt
(220.71 KiB) Downloaded 219 times


User avatar
skylark
Posts: 197
Joined: Mon Jul 09, 2012 6:18 pm
Country: -
Location: Oxford, England

Re: Audio (voice) - Stock 9X PCB

Post by skylark » Sat Dec 08, 2012 7:48 pm

Mike, That looks professional. Great job.
Stan.
He who knows not and knows not he knows not, is a fool: SHUN HIM.

He who knows and knows he knows, is a wise man : SEEK HIM

But he who knows not and knows he knows not, is a baby: TEACH HIM.

User avatar
mbanzi
Posts: 223
Joined: Thu May 24, 2012 5:53 am
Country: -
Location: San Diego, CA

Re: Audio (voice) - Stock 9X PCB

Post by mbanzi » Sun Dec 09, 2012 1:35 am

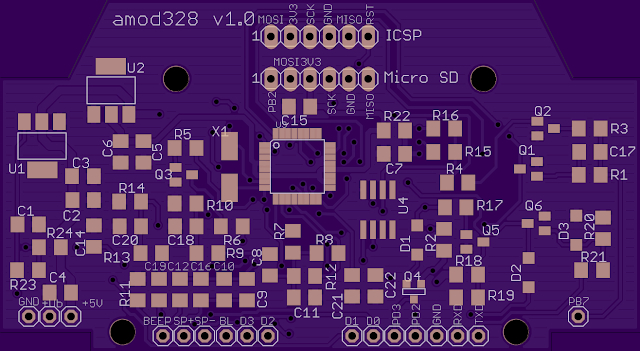

Just completed a first attempt at laying out a double sided full SMD version of the "HaGeHa" board. Still have to make sure my version of the board fits!


User avatar
skylark
Posts: 197
Joined: Mon Jul 09, 2012 6:18 pm
Country: -
Location: Oxford, England

Re: Audio (voice) - Stock 9X PCB

Post by skylark » Sun Dec 09, 2012 9:16 am

mbanzi,
That looks brilliant for a first attempt. Looks professional really. Good luck, hope it fits.
Stan
He who knows not and knows not he knows not, is a fool: SHUN HIM.

He who knows and knows he knows, is a wise man : SEEK HIM

But he who knows not and knows he knows not, is a baby: TEACH HIM.

User avatar
MikeB
9x Developer
Posts: 16547
Joined: Tue Dec 27, 2011 1:24 pm
Country: -
Location: Poole, Dorset, UK

Re: Audio (voice) - Stock 9X PCB

Post by MikeB » Mon Dec 10, 2012 12:53 am

man-bis wrote:Mike! I thought that the board would be more difficult. I'm sure that can be done without metallizer holes. Preferable to use a single layer board with jumper. Is it possible? It is waiting for test results, too!
There are quite a few Ground connections on the ground plane side, and I think the ground plane itself will help performance.

Mike.
erskyTx/er9x developer
The difficult we do immediately,
The impossible takes a little longer!

User avatar
MikeB
9x Developer
Posts: 16547
Joined: Tue Dec 27, 2011 1:24 pm
Country: -
Location: Poole, Dorset, UK

Re: Audio (voice) - Stock 9X PCB

Post by MikeB » Mon Dec 10, 2012 12:56 am

skylark wrote:Mike, That looks professional. Great job. Stan.
Thanks, Electronics/board design/formware is my day job.

Most of the comp[onents are now fitted, I hope to find enough time tomorrow (Monday) to finish it and start testing.

Mike.
erskyTx/er9x developer
The difficult we do immediately,
The impossible takes a little longer!

Oliver
Posts: 177
Joined: Mon Jul 23, 2012 1:02 pm
Country: -
Location: SPb, Russia

Re: Audio (voice) - Stock 9X PCB

Post by Oliver » Mon Dec 10, 2012 7:31 am

Hans, how do you prefer, or I replace in repository previous, first version of DIL board, or I make new folder for last version? (I think replacement would be better)

hageha
Posts: 213
Joined: Tue Dec 27, 2011 9:25 pm
Country: -
Location: Hildesheim

Re: Audio (voice) - Stock 9X PCB

Post by hageha » Mon Dec 10, 2012 5:28 pm

Oliver,
I agree with you.

User avatar
LTMNO
Posts: 1049
Joined: Fri Nov 30, 2012 9:31 pm
Country: Canada
Location: Toronto, Canada

Re: Audio (voice) - Stock 9X PCB

Post by LTMNO » Mon Dec 10, 2012 9:25 pm

Oliver, is it possible for you to take a close up picture of your board? I would love to have for reference when building out a copy.

Updated: Dec 11/2012
I am ready to build...
I have your schematic but a picture would be helpful as well. If it is not too muh trouble. ;-)
As well as one for the radio that shows placement. For the existing board that with the switch, I assume you drilled a little bigger whole where the screw mount is on your board so that it can pass through and allow the other board to sit on top? Did you move the transistor?
Please correct me if I am wrong.

Thanks.
Custom 9x with M64/Telemetry Mod

User avatar
pcipri76
Posts: 32
Joined: Tue Dec 11, 2012 6:48 am
Country: -
Location: Romania
Contact:

Re: Audio (voice) - Stock 9X PCB

Post by pcipri76 » Wed Dec 12, 2012 5:16 am

Mbanzi or Hageha, you can post somewhere scheme HAGEHA's Eagle format?

User avatar
man-bis
Posts: 27
Joined: Tue Dec 27, 2011 9:10 pm
Country: -
Location: Russia

Re: Audio (voice) - Stock 9X PCB

Post by man-bis » Wed Dec 12, 2012 5:34 am

Can I answer instead of Oliver.
The item to which the arrow is 5 volt regulator. With the existing board to unsolder: 5 volt regulator, controls transistor and the buzzer. That is, all the parts except for the power switch and wires.

Oliver
Posts: 177
Joined: Mon Jul 23, 2012 1:02 pm
Country: -
Location: SPb, Russia

Re: Audio (voice) - Stock 9X PCB

Post by Oliver » Wed Dec 12, 2012 5:54 am

Hello, Pino. This is not transistor. This is LM7805. Yes, remove it. And also remove beeper and real transistor near it (top right corner of board on you photo).

Yes, I drill hole exactly as stand's diameter for screw. So my board tightly sits on this stand even without screwing :). If it will insufficiently tightly, you can use doublesided tape between boards.

User avatar
mbanzi
Posts: 223
Joined: Thu May 24, 2012 5:53 am
Country: -
Location: San Diego, CA

Re: Audio (voice) - Stock 9X PCB

Post by mbanzi » Wed Dec 12, 2012 6:13 am

pcipri76 wrote:Mbanzi or Hageha, you can post somewhere scheme HAGEHA's Eagle format?
I'm working on it now that the designs appear to have stabilized!

Oliver
Posts: 177
Joined: Mon Jul 23, 2012 1:02 pm
Country: -
Location: SPb, Russia

Re: Audio (voice) - Stock 9X PCB

Post by Oliver » Wed Dec 12, 2012 8:37 am

mbanzi wrote:
pcipri76 wrote:Mbanzi or Hageha, you can post somewhere scheme HAGEHA's Eagle format?
I'm working on it now that the designs appear to have stabilized!
In repository there are Eagle's schematics, in my and Mbanzi folders, there only need to divide resistor on two and add capacitor between it.

User avatar
LTMNO
Posts: 1049
Joined: Fri Nov 30, 2012 9:31 pm
Country: Canada
Location: Toronto, Canada

Re: Audio (voice) - Stock 9X PCB

Post by LTMNO » Wed Dec 12, 2012 1:22 pm

Oliver wrote:Hello, Pino. This is not transistor. This is LM7805. Yes, remove it. And also remove beeper and real transistor near it (top right corner of board on you photo).

Yes, I drill hole exactly as stand's diameter for screw. So my board tightly sits on this stand even without screwing :). If it will insufficiently tightly, you can use doublesided tape between boards.
man-bis/Oliver,

Thanks for clearing that up. I knew I had to remove everything upstream from there except the voltage regulator(transistor, haha)... but that makes more sense now.
However, I was interested in doing the Haptic Mod as well. Can I tie that into the New Sound Board on the Buzzer Lead? Do I need to put any other components on there to accomodate anything? In the Haptic Mod, they have you adding a few things on this board which would most likely get in the way and not work anymore as I am removing the voltage regulator.
ie.
1. 4.7uF capacitor
2. 10uF 16V capacitor
3. 1K ohm resistor
4. 390 ohm resistor
5. 1N4001 diode

Haptic Mod

In theory, If I just put the Voltage Regulator on the other side and can carry out the Haptic Mod, then feed the Vibrator Motor off the Buzzer Lead... it could all work together? OR This could be rectified if the Sound Board supports the use of the Vibrator Motor in place of the Buzzer.

Thanks again, You guys make me want to go back to school and learn electrical engineering. My Bio-Med degree just isn't cutting it in here. ;-)
Custom 9x with M64/Telemetry Mod

User avatar
jhsa
Posts: 18890
Joined: Tue Dec 27, 2011 5:13 pm
Country: Germany

Re: Audio (voice) - Stock 9X PCB

Post by jhsa » Wed Dec 12, 2012 1:36 pm

I didn't do the haptic mod but I think it uses another pin on the CPU and not the buzzer?? :o
My er9x/Ersky9x/eepskye Video Tutorials
https://www.youtube.com/playlist?list=PL5uJhoD7sAKidZmkhMpYpp_qcuIqJXhb9

Donate to Er9x/Ersky9x:
https://www.paypal.com/cgi-bin/webscr?cmd=_s-xclick&hosted_button_id=YHX43JR3J7XGW

User avatar
LTMNO
Posts: 1049
Joined: Fri Nov 30, 2012 9:31 pm
Country: Canada
Location: Toronto, Canada

Re: Audio (voice) - Stock 9X PCB

Post by LTMNO » Wed Dec 12, 2012 1:48 pm

Hi Joao
That is correct, the pin 43 on the CPU. But it looks like the vibrator is connected to the buzzer leads. And the speaker connected up stream via some capacitors and resistors.

It's not that important to me as the sound board. But I did buy a motor and I like the idea of that feature. :-)
Custom 9x with M64/Telemetry Mod

User avatar
pcipri76
Posts: 32
Joined: Tue Dec 11, 2012 6:48 am
Country: -
Location: Romania
Contact:

Re: Audio (voice) - Stock 9X PCB

Post by pcipri76 » Wed Dec 12, 2012 4:02 pm

Hi Oliver and Hageha! I do not know whether to keep could, but if possible I would like to buy such a plate ready functional. If you oeri to sell something, I want to know at what price and how to purchase. Preferably by PayPal.
You also may ask you to post some photos containing all the wires towards processor?
Last edited by pcipri76 on Wed Dec 12, 2012 4:14 pm, edited 2 times in total.

User avatar
pcipri76
Posts: 32
Joined: Tue Dec 11, 2012 6:48 am
Country: -
Location: Romania
Contact:

Re: Audio (voice) - Stock 9X PCB

Post by pcipri76 » Wed Dec 12, 2012 4:12 pm

Hi Oliver and Hageha! I do not know whether to keep could, but if possible I would like to buy such a plate ready functional. If you oeri to sell something, I want to know at what price and how to purchase. Preferably by PayPal.
You also may ask you to post some photos containing all the wires towards processor?

User avatar
MikeB
9x Developer
Posts: 16547
Joined: Tue Dec 27, 2011 1:24 pm
Country: -
Location: Poole, Dorset, UK

Re: Audio (voice) - Stock 9X PCB

Post by MikeB » Wed Dec 12, 2012 4:35 pm

Well, my board is talking, beeping and controlling the backlight. I have still to test the serial interfaces, then I'll put it in a TX, it's on a test bed at the moment.

Mike.
erskyTx/er9x developer
The difficult we do immediately,
The impossible takes a little longer!

User avatar
skylark
Posts: 197
Joined: Mon Jul 09, 2012 6:18 pm
Country: -
Location: Oxford, England

Re: Audio (voice) - Stock 9X PCB

Post by skylark » Wed Dec 12, 2012 4:53 pm

MikeB wrote:Well, my board is talking, beeping and controlling the backlight. I have still to test the serial interfaces, then I'll put it in a TX, it's on a test bed at the moment.

Mike.
Hi Mike, That's excellent.
Stan.
He who knows not and knows not he knows not, is a fool: SHUN HIM.

He who knows and knows he knows, is a wise man : SEEK HIM

But he who knows not and knows he knows not, is a baby: TEACH HIM.

User avatar
LTMNO
Posts: 1049
Joined: Fri Nov 30, 2012 9:31 pm
Country: Canada
Location: Toronto, Canada

Re: Audio (voice) - Stock 9X PCB

Post by LTMNO » Wed Dec 12, 2012 8:45 pm

MikeB wrote:Well, my board is talking, beeping and controlling the backlight. I have still to test the serial interfaces, then I'll put it in a TX, it's on a test bed at the moment.

Mike.
Awesome Mike! Can't wait for the source posting.
Custom 9x with M64/Telemetry Mod

User avatar
mbanzi
Posts: 223
Joined: Thu May 24, 2012 5:53 am
Country: -
Location: San Diego, CA

Re: Audio (voice) - Stock 9X PCB

Post by mbanzi » Thu Dec 13, 2012 8:05 am

Checked the fit of the 2 board designs tonight, both work well. The T board will be simpler to make at home, while the other board provides more real estate. I've completed the layout for T board using all through hole components, similar to MikeB's layout. I'm working on a full SMD & also another using DIP packages for the 2 big chips, similar to HaGeHa's layouts. I still have to confirm a few of the component choices though.

Once I'm done I'll check in the Eagle CAD 6.3 designs for download. I use OSH Park (a PCB batching service) for all my boards, I've stopped etching them myself unless I need a board right away. The boards are double sided with silk screening & solder masking on both sides. The board should be around $10, although you have to order a minimum of 3.



User avatar
MikeB
9x Developer
Posts: 16547
Joined: Tue Dec 27, 2011 1:24 pm
Country: -
Location: Poole, Dorset, UK

Re: Audio (voice) - Stock 9X PCB

Post by MikeB » Thu Dec 13, 2012 6:26 pm

Serial RS232 is OK, just read the program out using it. Just need to check the logic serial to the M64 and the mechanical fit, then I'll be ready to release all the build information.

Mike.
erskyTx/er9x developer
The difficult we do immediately,
The impossible takes a little longer!

User avatar
pcipri76
Posts: 32
Joined: Tue Dec 11, 2012 6:48 am
Country: -
Location: Romania
Contact:

Re: Audio (voice) - Stock 9X PCB

Post by pcipri76 » Thu Dec 13, 2012 7:22 pm

Oliver would like to know if I drew well: So MicroSD card connects to the ISP interface? If not correct, you could please put files in eagle and wiring diagram MicroSD card?
Attachments

User avatar
HC1969
Posts: 421
Joined: Wed Dec 28, 2011 8:47 am
Country: Hungary
Location: Istvan Magi
Contact:

Re: Audio (voice) - Stock 9X PCB

Post by HC1969 » Fri Dec 14, 2012 6:29 am

My MegaSound 9X board (with microSD):
Attachments
MegaSound 9X.jpg
Integrated microsSD holder.
http://rc.emiter.hu/ (MegaSound 9X, GCL-2, FrSky-RSSI-DAC, etc.) Keress fel!


Post Reply

Return to “er9x”
